Operational Amplifier
Op-Amp.
| Product Name | Features |
|---|---|
NJM2904B |
High EMC Performance, Single Supply, Operational Amplifier |
NJM8532 |
14V, Low Noise, Low Power, Rail-to-Rail Input/Output, Operational Amplifier |
NJU7047 |
9V/µs High-Speed, Rail-to-Rail I/O CMOS Operational Amplifier |
NJU7057 |
Low Noise, Low Offset Voltage Drift, Rail-to-Rail Output, Excellent EMI Immunity, CMOS Operational Amplifier |
NJU77552 |
1.7MHz, 50µA/ch, Excellent EMI Immunity, Rail-to-Rail Input/Output, Operational Amplifier |
NJU77701 |
Wide-Band, High-Speed, Low-Offset, Low-Noise Rail-to-Rail Input/Output CMOS Operational Amplifier |
Comparator
Comparator
| Product Name | Features |
|---|---|
NJM2903 |
Single-Supply Dual Comparator |
NJU77242 |
Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators |
Power Management
LDO
| Product Name | Features |
|---|---|
NJM11100 |
Adjustable Low Dropout Regulator with Reverse Current Protection |
NJM12884 |
LDO with Reverse Current Protection / Soft Start / Discharge Function |
NJW2897 |
LDO with Reverse Current Protection / Discharge Function |
NJW4104 |
45V Io=200mA Ultra low Quiescent current LDO |
NJW4105 |
High Voltage Io=500ma LDO Regulator |
NJW4106 |
High Voltage Io = 500 mA Adjustable LDO Regulator |
NJW4107 |
45V Io=300mA LDO |
NJW4182 |
High Voltage Ultra low current consumption Io=100mA LDO |
R1517 |
36V Input 500mA Low Supply Current Voltage Regulator |
R1518 |
36V Input 1A Low Supply Current Voltage Regulator |
R1524 |
Low Supply Current 36V Input 200mA Voltage Regulator |
R1525 |
High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
R1526 |
High Noise Immunity 42V Input 300mA Voltage Regulator |
RP111 |
Low Voltage Good Load Transient Response 500mA LDO Regulator |
RP132 |
Low Voltage 1ALDO Regulator |
RP170 |
10V Input 300mA LDO Regulator |
DC/DC
| Product Name | Features |
|---|---|
NJW1871 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4132 |
Switching Regulator IC for Boost Converter Current Mode Control with 45V/1.75A MOSFET |
NJW4133 |
2.4MHz, 45V, 5A MOSFET Switching Regulator IC for Boost Converter |
NJW4140 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4142 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4171 |
2.4MHz, 2.5A MOSFET Switching Regulator IC for Buck Converter |
R1260 |
60V Input / 80V Absolute Maximum Rating Synchronous Step-down DC/DC Controller |
R1271 |
30 V, 1 A Synchronous PWM Step-down DC/DC Converter |
R1276 |
3A 30V Input Step-down DC/DC Converter with Synchronous Rectifier |
R1278 |
30 V, 2 A Synchronous PWM Step-down DC/DC Converter |
Tracking Regulator
| Product Name | Features |
|---|---|
R1540 |
High Noise Immunity 42V Input 70mA Voltage Tracker |
Voltage Detector/ Watchdog Timer
| Product Name | Features |
|---|---|
R3118 |
Low Voltage Detector with Individual SENSE Pin and Delay Function |
R3121xxxxA |
36V Input Voltage Detector with Release Delay Function |
R3121xxxxE |
36V Input Voltage Detector with Release Delay Function |
R3152 |
42V Input Window Voltage Detector |
R3154 |
42 V Input Window Voltage Detector with Diagnostic Function |
R3500 |
42 V Input 4ch Window Voltage Detector with Diagnostic Function |
R5110 |
36V Input System Power Supply with Watchdog Timer |
R5112 |
Low Supply Current 42V Input 200mA Voltage Regulator with VD |
R5114 |
Low Supply Current 42V Input System Power Supply with Watchdog Timer |
R5115 |
Low Supply Current 42V Input System Power Supply with Window-type Watchdog Timer |
R5116 |
42V Input Voltage Regulator with Window Voltage Detector |
R5117 |
42V Input Voltage Regulator with Battery Voltage Detector |
Switching Driver
Gate Driver
| Product Name | Features |
|---|---|
NJW4841 |
1-channel Switching Gate Driver |
NJW4868 |
Gate Driver with current and voltage detection |

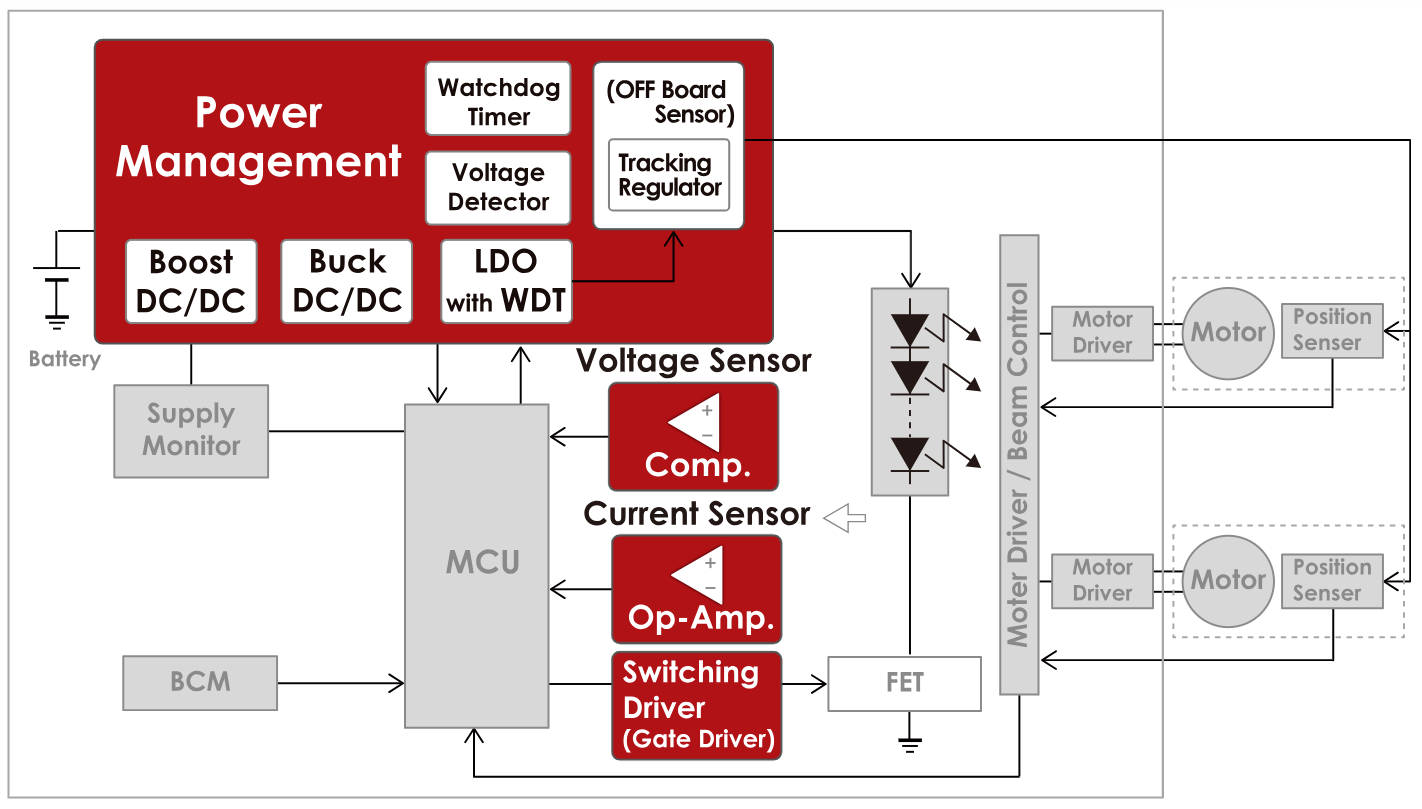

(Source： Nisshinbo Micro Devices Inc.，LED Headlight ECU )
