Electronic Power Steering (EPS)

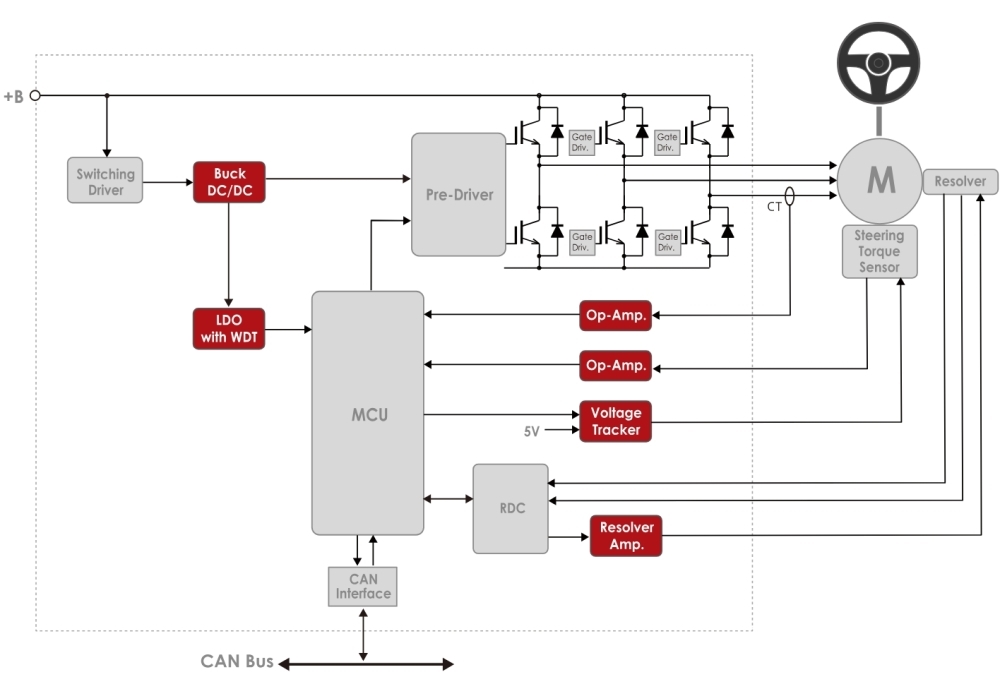

Application Block for Electronic Power Steering (EPS)

Application Block for Electronic Power Steering (EPS)

Electronic Power Steering (EPS)





Operational Amplifier





Op-Amp.

Product Name Features
NJM2904B
High EMC Performance, Single Supply, Operational Amplifier
NJM8532
14V, Low Noise, Low Power, Rail-to-Rail Input/Output, Operational Amplifier



Comparator



Comparator

Product Name Features
NJM2903
Single-Supply Dual Comparator
NJU77242
Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators



ASSP



Resolver Amp.

Product Name Features
NJU77903
High Output Current, Rail-to-Rail Input/Output Single CMOS Operational Amplifiers
NJU7870
Amplifier for resolver excitation



Power Management



LDO

Product Name Features
NJM12884
LDO with Reverse Current Protection / Soft Start / Discharge Function
NJM2879
LDO with Reverse Current Protection / Discharge Function
NJW4182
High Voltage Ultra low current consumption Io=100mA LDO
NJW4116
Io=500mA LDO with Reset function
R1517
36V Input 500mA Low Supply Current Voltage Regulator
R1518
36V Input 1A Low Supply Current Voltage Regulator
R1524
Low Supply Current 36V Input 200mA Voltage Regulator
R1525
High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator
R1526
High Noise Immunity 42V Input 300mA Voltage Regulator
R1560
Low Supply Current 60V Input 100mA Voltage Regulator
R1561
60V Input 100mA Voltage Regulator
R8150
Low Supply Current 36V Input 150mA Voltage Regulator
R8152
24V Input 1A Voltage Regulator
R8160
Low Supply Current 36V Input 200mA Voltage Regulator



DC/DC

Product Name Features
NJW4140
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter
NJW4148
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter
NJW4152BA
Switching Regulator IC for Buck Converter with 40V/600mA MOSFET
NJW4722
(Under Development)
MOSFET Drive Switching Regulator IC for Fly-back Converter
R1260
60V Input / 80V Absolute Maximum Rating Synchronous Step-down DC/DC Controller
R1271
30 V, 1 A Synchronous PWM Step-down DC/DC Converter



Tracking Regulator

Product Name Features
R1540
High Noise Immunity 42V Input 70mA Voltage Tracker



Voltage Detector/ Watchdog Timer

Product Name Features
NV3600
CMOS Output, Voltage Detector with High Withstand of SENSE Pin
NV3601
CMOS Output, Window Voltage Detector with High Withstand of SENSE Pin
R3121xxxxA
36V Input Voltage Detector with Release Delay Function
R3121xxxxE
36V Input Voltage Detector with Release Delay Function
R3152
42V Input Window Voltage Detector
R3154
42 V Input Window Voltage Detector with Diagnostic Function
R3160
Low Supply Current 60V Input Voltage Detector
R3500
42 V Input 4ch Window Voltage Detector with Diagnostic Function
R5110
36V Input System Power Supply with Watchdog Timer
R5111
36V Input System Power Supply with Watchdog Timer
R5114
Low Supply Current 42V Input System Power Supply with Watchdog Timer
R5115
Low Supply Current 42V Input System Power Supply with Window-type Watchdog Timer
R5116
42V Input Voltage Regulator with Window Voltage Detector
R5117
42V Input Voltage Regulator with Battery Voltage Detector
R8300
36V Input Voltage Detector with Release Delay Function
