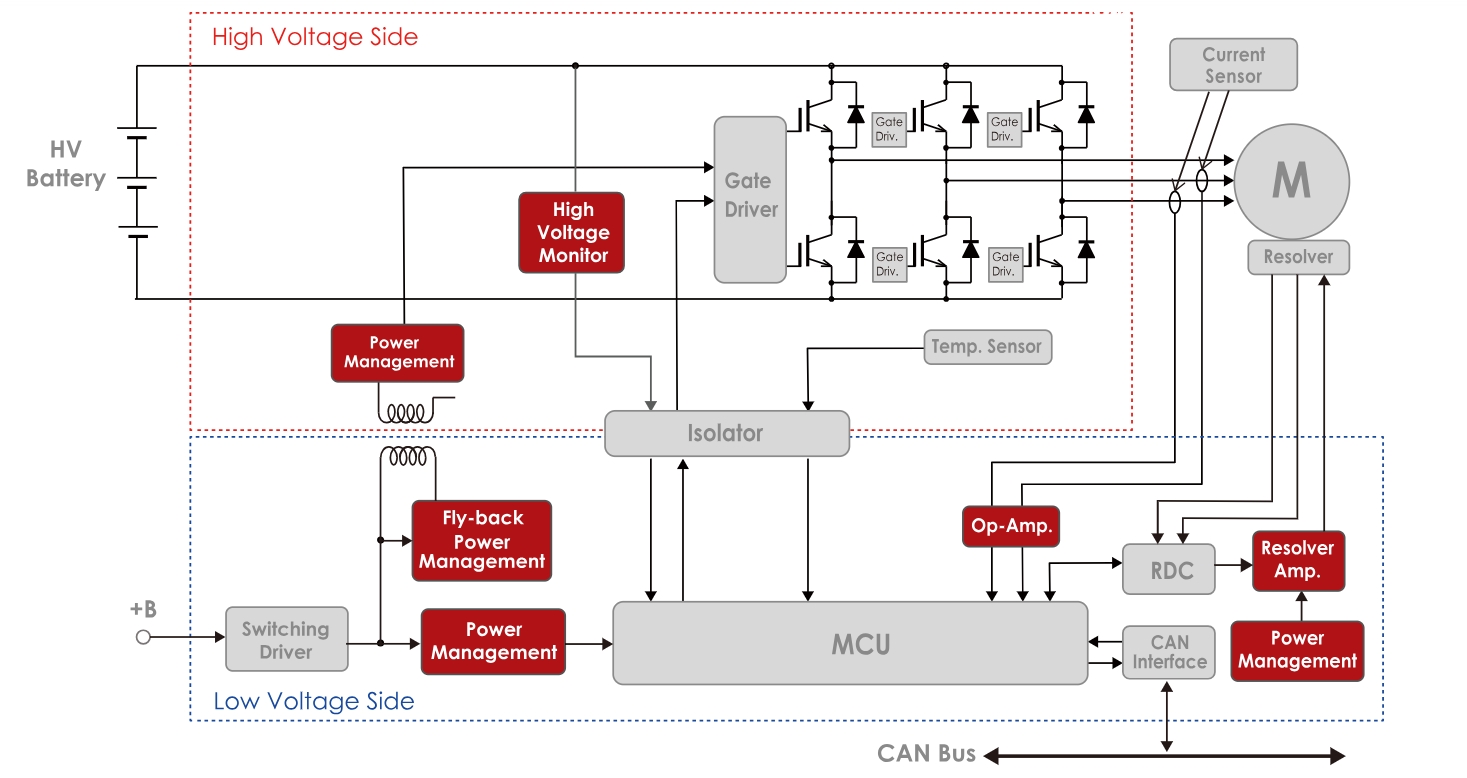

Application Block for e-Axle (inverter)
.jpg)
Operational Amplifier
Op-Amp.
| Product Name | Features |
|---|---|
NJM2904B |
High EMC Performance, Single Supply, Operational Amplifier |
NJM8208 |
Precision, Single Supply, Dual Operational Amplifier |
NJM8532 |
14V, Low Noise, Low Power, Rail-to-Rail Input/Output, Operational Amplifier |
NJU7077 |
Precision, Low Noise, Rail-to-Rail Output, Excellent EMI Immunity, CMOS Operational Amplifiers |
Comparator
Comparator
| Product Name | Features |
|---|---|
NJM2903 |
Single-Supply Dual Comparator |
NJU77242 |
Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators |
ASSP
Resolver Amp.
| Product Name | Features |
|---|---|
NJU77903 |
High Output Current, Rail-to-Rail Input/Output Single CMOS Operational Amplifiers |
NJU7870 |
Amplifier for resolver excitation |
High Voltage Monitor
| Product Name | Features |
|---|---|
NJU7890 |
1000V High Voltage Monitor IC |
NL9000 (Under Development) |
1000V High Voltage Monitor IC |
Power Management
LDO
| Product Name | Features |
|---|---|
NJM12884 |
LDO with Reverse Current Protection / Soft Start / Discharge Function |
NJM2879 |
LDO with Reverse Current Protection / Discharge Function |
NJW4182 |
High Voltage Ultra low current consumption Io=100mA LDO |
NJW4116 |
Io=500mA LDO with Reset function |
R1517 |
36V Input 500mA Low Supply Current Voltage Regulator |
R1518 |
36V Input 1A Low Supply Current Voltage Regulator |
R1524 |
Low Supply Current 36V Input 200mA Voltage Regulator |
R1525 |
High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
R1526 |
High Noise Immunity 42V Input 300mA Voltage Regulator |
R1560 |
Low Supply Current 60V Input 100mA Voltage Regulator |
R1561 |
60V Input 100mA Voltage Regulator |
R8150 |
Low Supply Current 36V Input 150mA Voltage Regulator |
R8152 |
24V Input 1A Voltage Regulator |
R8160 |
Low Supply Current 36V Input 200mA Voltage Regulator |
DC/DC
| Product Name | Features |
|---|---|
NJW4140 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4148 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4152BA |
Switching Regulator IC for Buck Converter with 40V/600mA MOSFET |
NJW4722 (Under Development) |
MOSFET Drive Switching Regulator IC for Fly-back Converter |
R1260 |
60V Input / 80V Absolute Maximum Rating Synchronous Step-down DC/DC Controller |
R1271 |
30 V, 1 A Synchronous PWM Step-down DC/DC Converter |
Tracking Regulator
| Product Name | Features |
|---|---|
R1540 |
High Noise Immunity 42V Input 70mA Voltage Tracker |
Voltage Detector/ Watchdog Timer
| Product Name | Features |
|---|---|
NV3600 |
CMOS Output, Voltage Detector with High Withstand of SENSE Pin |
NV3601 |
CMOS Output, Window Voltage Detector with High Withstand of SENSE Pin |
R3121xxxxA |
36V Input Voltage Detector with Release Delay Function |
R3121xxxxE |
36V Input Voltage Detector with Release Delay Function |
R3152 |
42V Input Window Voltage Detector |
R3154 |
42 V Input Window Voltage Detector with Diagnostic Function |
R3160 |
Low Supply Current 60V Input Voltage Detector |
R3500 |
42 V Input 4ch Window Voltage Detector with Diagnostic Function |
R5110 |
36V Input System Power Supply with Watchdog Timer |
R5114 |
Low Supply Current 42V Input System Power Supply with Watchdog Timer |
R5115 |
Low Supply Current 42V Input System Power Supply with Window-type Watchdog Timer |
R5116 |
42V Input Voltage Regulator with Window Voltage Detector |
R5117 |
42V Input Voltage Regulator with Battery Voltage Detector |
R8300 |
36V Input Voltage Detector with Release Delay Function |
(Source： Nisshinbo Micro Devices Inc.，e-Axle (inverter) )
