NISD Muses05 是一款用於高級音響設備的運算放大器
這是高品質音頻設備Muses系列的旗艦產品。採用先進電路設計和特殊材料和組裝技術來消除阻礙提高音質的限制，提供高品質的聲音。Muses05具有高品質、低輸入、低輸入偏置電流、低噪聲、超低失真以及高轉換效率等特點，適用於I/V轉換器、前置放大器、主動功率濾波器、耳機放大器和線路放大器。透過小封裝實現高品質音質和高散熱。
產品特點
| Features | Details | Images |

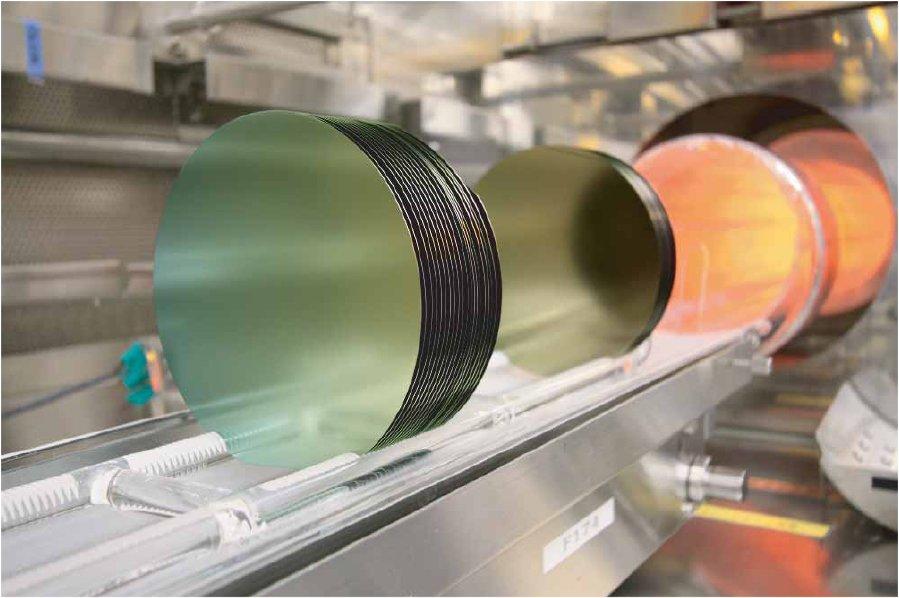

| High quality audio process | Tuned process for audio and developed special transistors that emphasize sound quality. |  High quality sound wafer process |

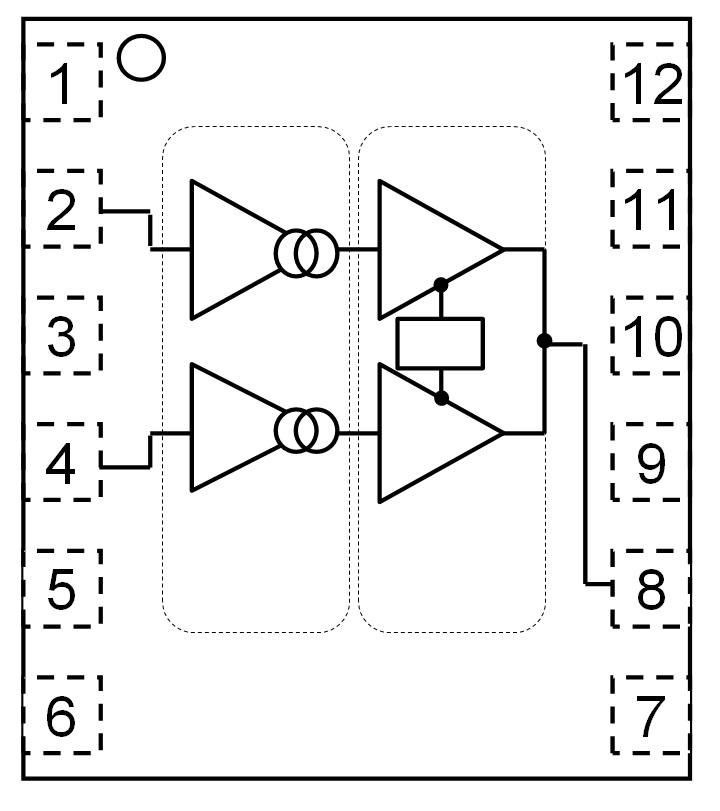

High quality audio circuit technology | Full-balanced differential amplifier circuit improves transient response, dynamic range and distortion characteristics. |  Full-balanced differential amplifier circuit |

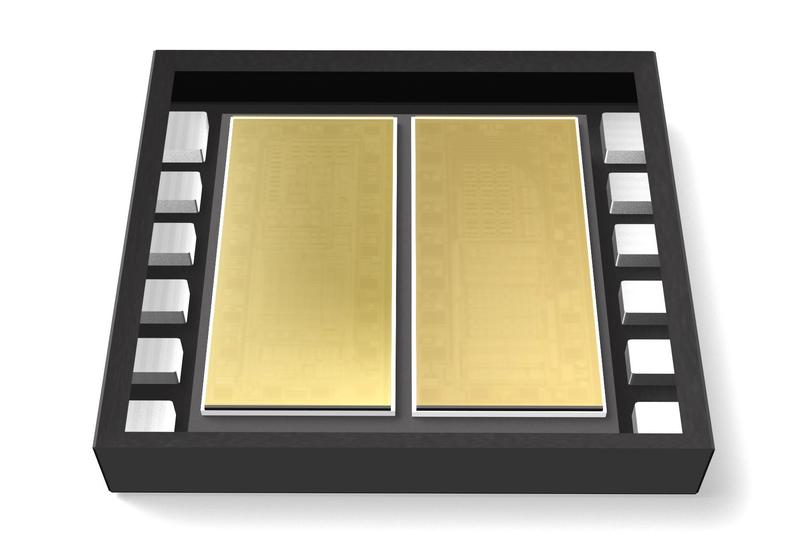

In order to reduce the mutual interference between the front stage and the rear stage in the amplifier to a minimum, the input and output stages of the circuit are separated by 2 chips. |  2-chip configuration of input stage and output stage |

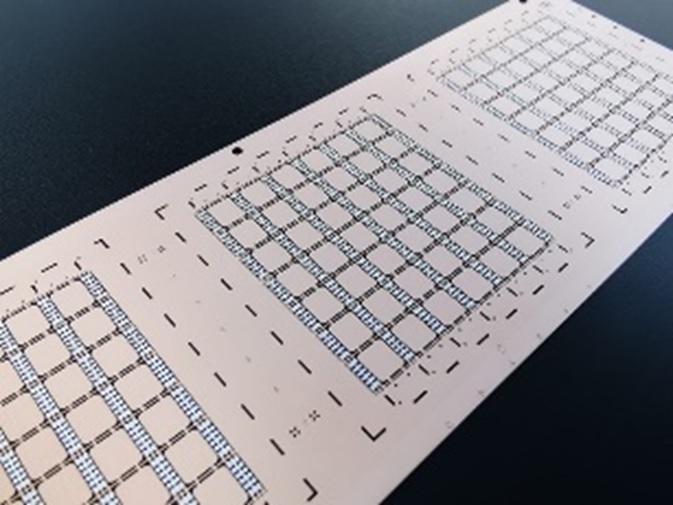

High quality audio materials | High-purity oxygen-free copper is used for the lead frame to achieve low loss and high heat dissipation. |  Oxygen-free copper lead frame |
特色
| Input stage/number of circuits | J-FET/1 circuit |
| Operating power supply | ±3.5V to ±18V |
| THD | 0.00003% typ. (f=1kHz) |
| Equivalent input noise voltage | 7.5nV/√Hz typ. (f=1kHz) |
| Slew rate | SR=40V/μs typ. |
| Gain bandwidth product | 12MHz typ. |

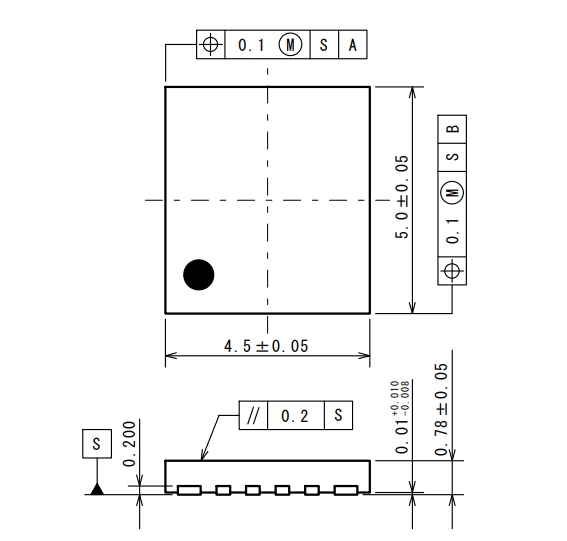

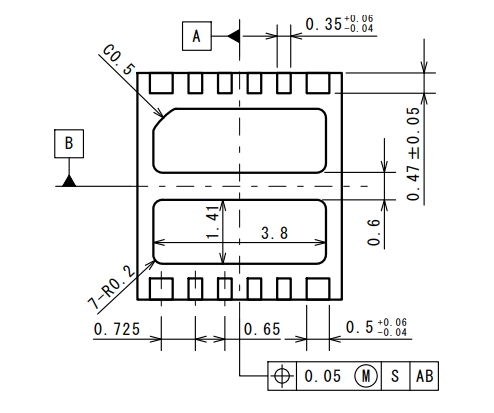

包裝尺寸

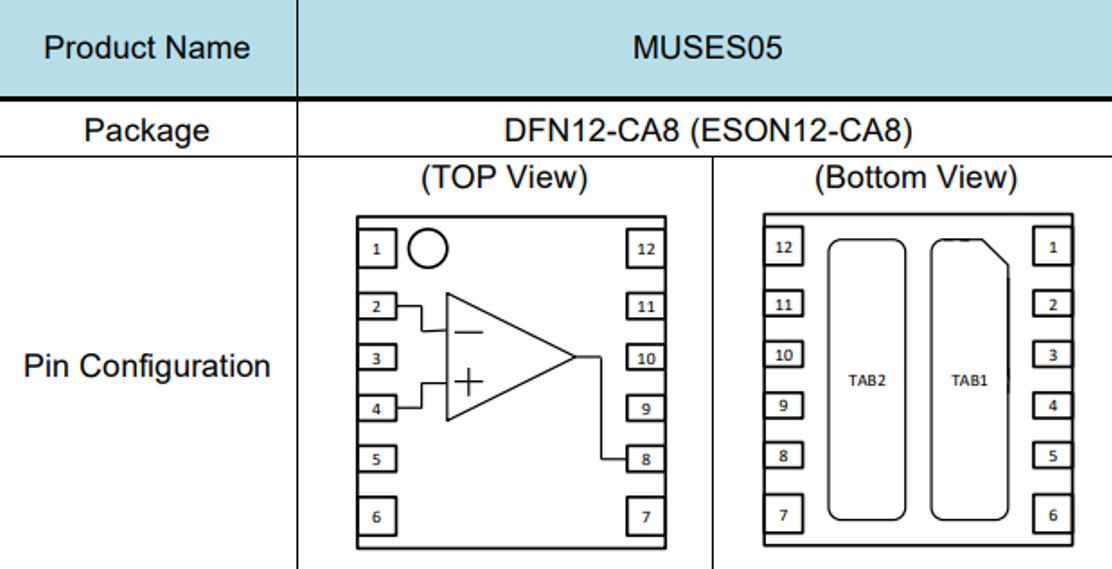

腳位
